Embedded tempered glass solar road stud
Your position: Home > Products > Solar Road Stud
Embedded tempered glass solar road stud
Embedded glass solar road stud
Item No.：SRSG1
Description：
Special design, tempered glass boll as the luminescent part,better dustproof effect.Leds emit light actively,high bright,high strong
- Content
- Specification
- Advantage
- Comparison
- Installation
- Application
- Purchase
Product introduction:

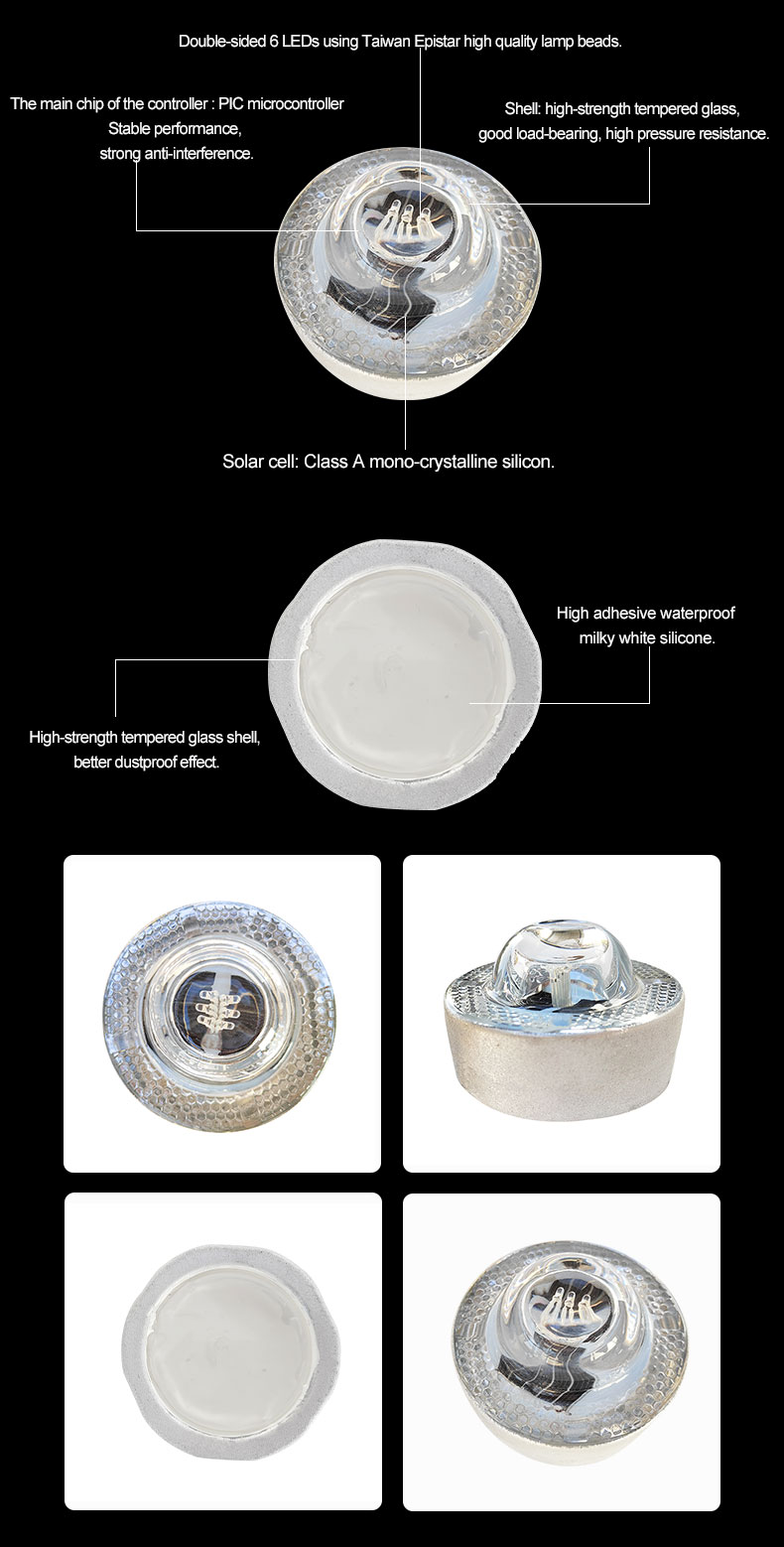

Solar road stud is one of the road studs,usually installed follow the road marking line, is used for indicating the road direction at night or rainy or foggy days.It is composed of shell , reflector,solar panel, LED and circuit board and so on.
It flash or be steady light at night actively, doesn’t depend on car light,make more longer visible distance,more clear visual feeling to driver,make driving more safe.
Size: D110*H68mm

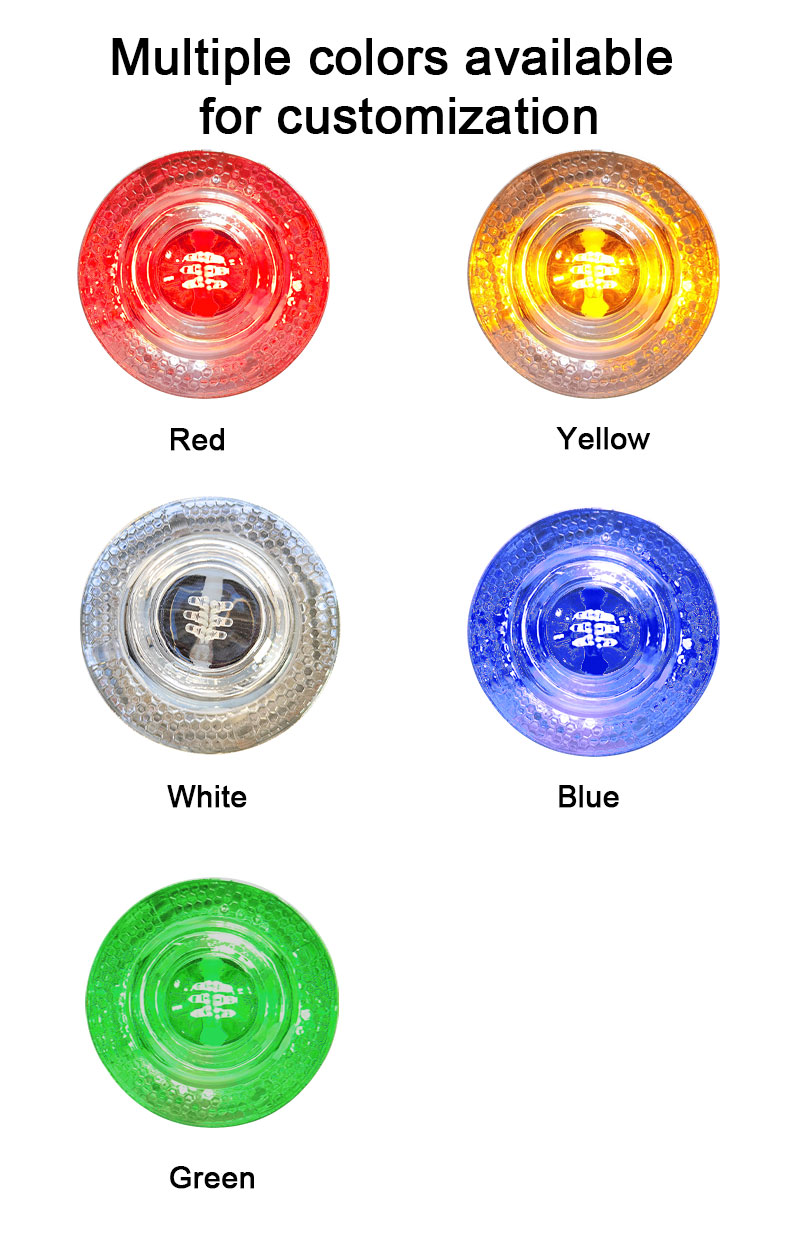

Colour: Red/Yellow/White/Blue/Green
Light mode: Flash or Constant light
Auto-light control: 300--900lux
Full charge time: 12hours (under 100,000lux)
Working time: Flash > 120h, Constant>120h
Water-proof: IP68
Using temperature:-20℃～80℃
Load-bearing: >400kN
Visual distance: >800meters
Warranty: 1 year
Service life: 5 years
1.The luminescent part is temered glass ball with unique shape,better dustproof effect
2.Perfect design, high load-bearing, high impact resistance, friction resistance ,corrosion resistance
3.Easy installation, free maintenance
| Item |
Other Supplier |
OWLEYE |
|
Battery |
Ni-MH or Ni - Cd battery, charge and discharge less than 500times. Short lifetime |
Special made Li-ion batter, charge and discharge more than 2000times,really more 5 years lifetime |
|
Solar cell |
Most use B or C -grade,even scrap piece solar cell which be low efficiency and short lifetime |
Only use A-grade and high - efficiency monocrystalline silicon solar cell which the conversion efficiency of light to electricity is as high as 19.9%.
|
|
Material
|
Just normal glass,not enough strong,easy broken,not safe for tyre
|
Tempered glass and International standard GB-ADC10 Aluminum，good performance,load bearing more 40tons |

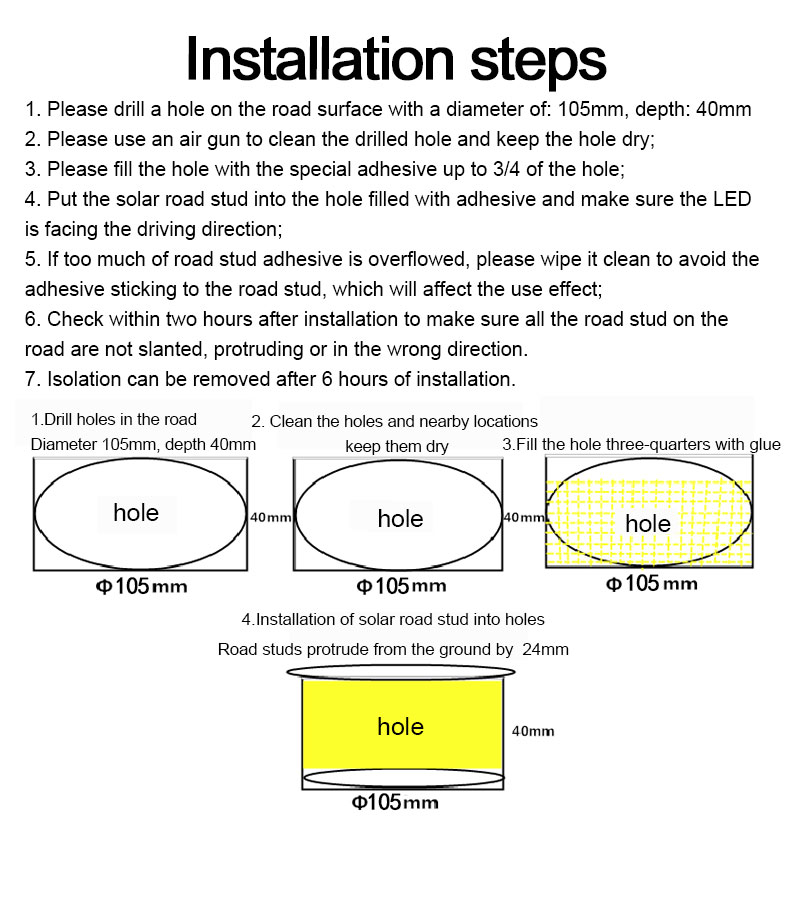

1.Before installation ,you must isolate the working place with road and make sure safety .
2.Determine the location of the installation, Then make a hole .
3.Ensure that the location of the installation level off, can not be installed on cracks and uneven road surface.
4.Installation
●Open the necessary holes with Diameter:120mm , Depth : 40mm;
●Dry the holes with a blowtorch and clean all the structure;
●Pour the glue into the hole ,get to three quarters of the hole;
●Put the solar road stud into the hole;
●Ensure the right direction.If the glue is too much, it must be clean; Don’t cover the glue on road stud .
5.Checking within two hours after installation, ensure that all of the road stud no upside, loaded askew.
6.Installation after 6 hours, you can removing isolation facilities.
Notes
●These details play a very important role in ensuring the quality requirements and service life of the solar road stud ;
1. Quality assurance
Guangzhou Owleye Optoelectronic Technology Co.,Ltd. focus on the research,
production,development and application of road traffic safety produts. Specialize in
producing the high quality solar road stud and other road safety products for many
years,please be free to purchase
2.Package
20pcs/ctn N.W： 16kg G.W：18kg Ctn size: 46*26.5*28cm
3.For shipping
Before knowing your destination and shipping way,all our quotation is EXW price,if you have
more requirements or want to know more about shipping ,please contact with sales
4. About after-sale service
Warranty is 1 year(non human reason). Just need to show the Contract or Proforma invoice
5. About service consultation
Tel: 020-39218706
Welcome your inquiry and nice long term cooperation,will make you satisfied
