Product introduction:

Solar road stud is one of the road studs,usually installed follow the road marking line, is used for indicating the road direction at night or rainy or foggy days.It is composed of shell , reflector,solar panel, LED and circuit board and so on.

It flash or be steady light at night actively, doesn’t depend on car light,make more longer visible distance,more clear visual feeling to driver,make driving more safe.

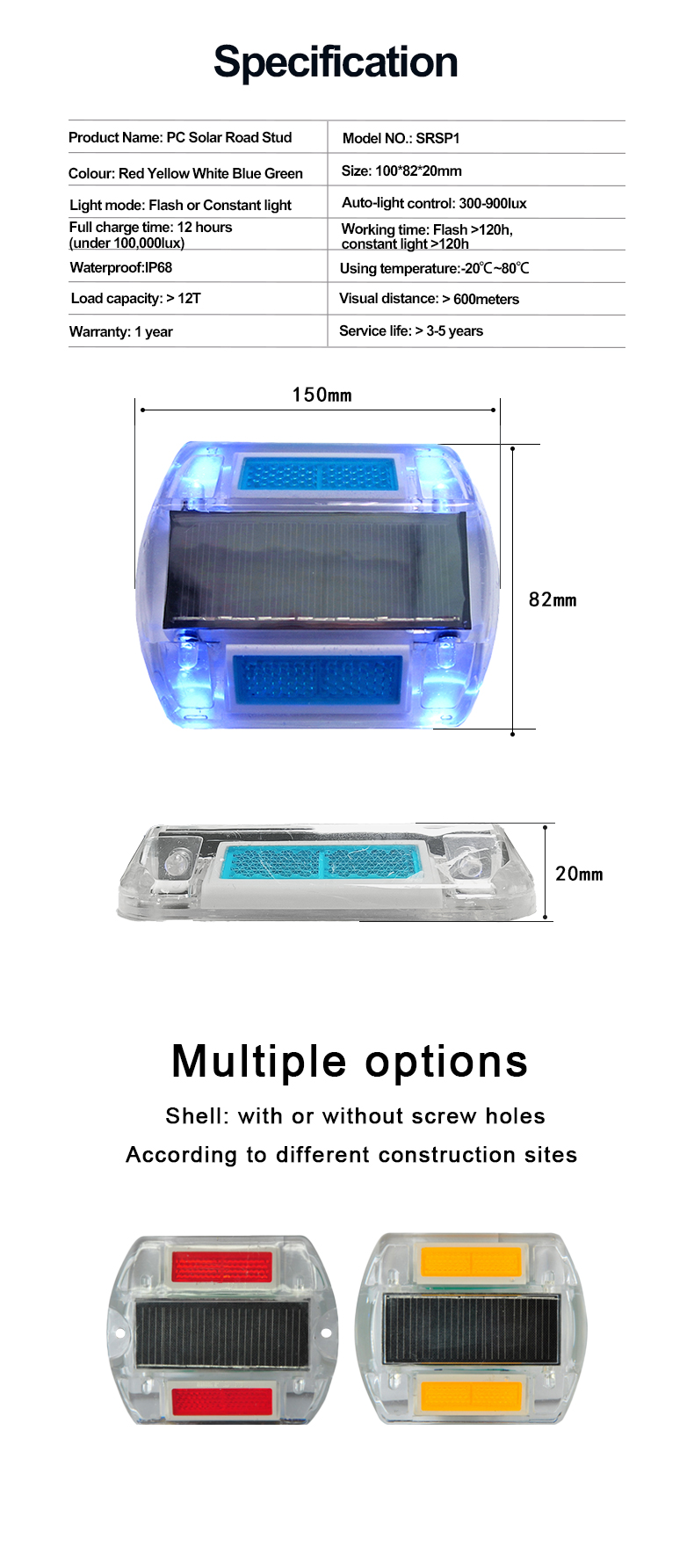

Size: 100*82*20mm

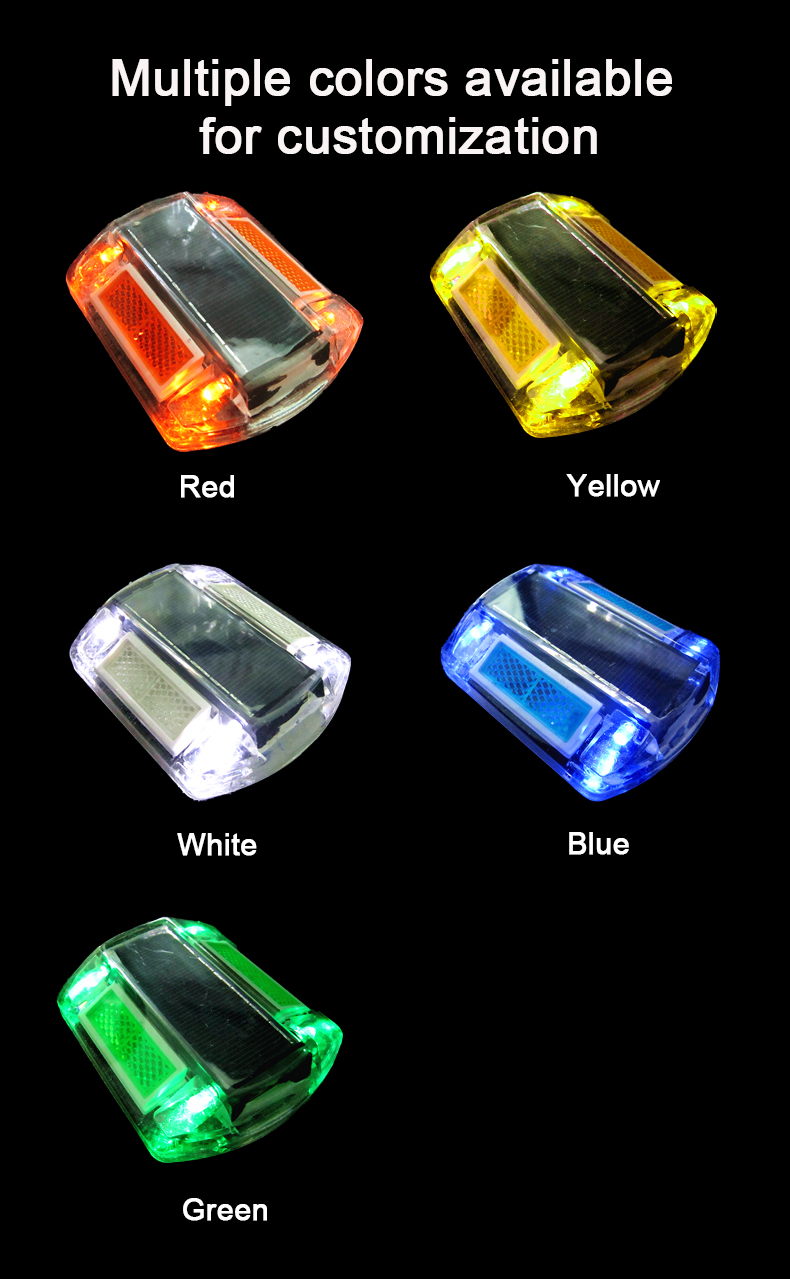

Colour: Red/Yellow/White/Blue/Green

Light mode: Flash or Constant light

Auto-light control: 300--900lux

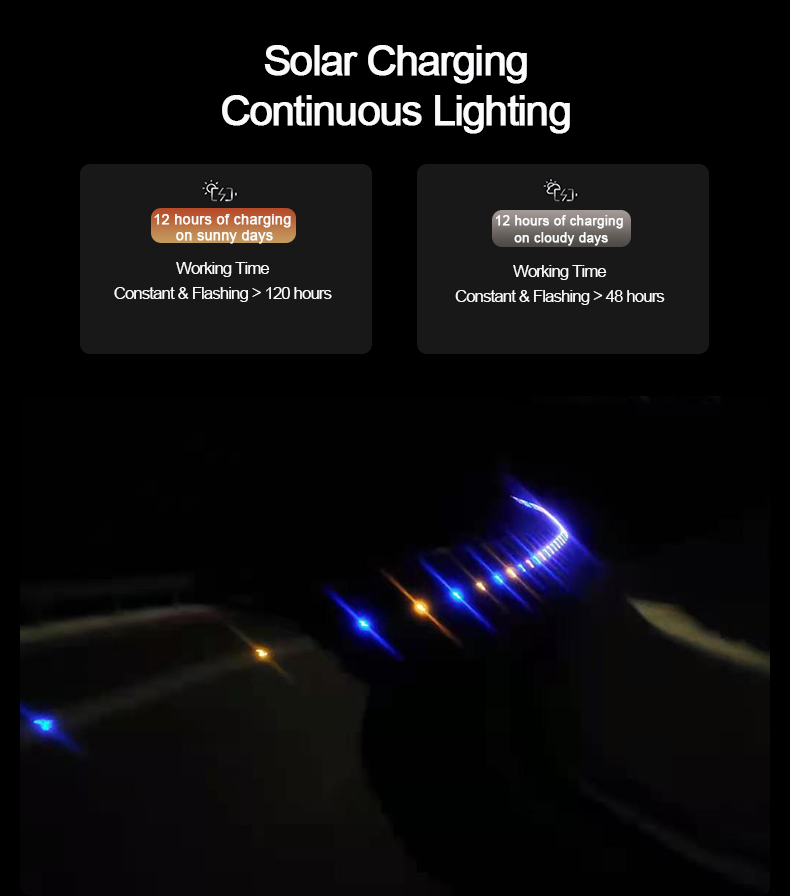

Full charge time: 12hours (under 100,000lux)

Working time: Flash > 120h, Constant>120h

Water-proof: IP68

Using temperature:-20℃～80℃

Load-bearing: >120kN

Visual distance: >800meters

Warranty: 1 year

Service life: 3--5 years

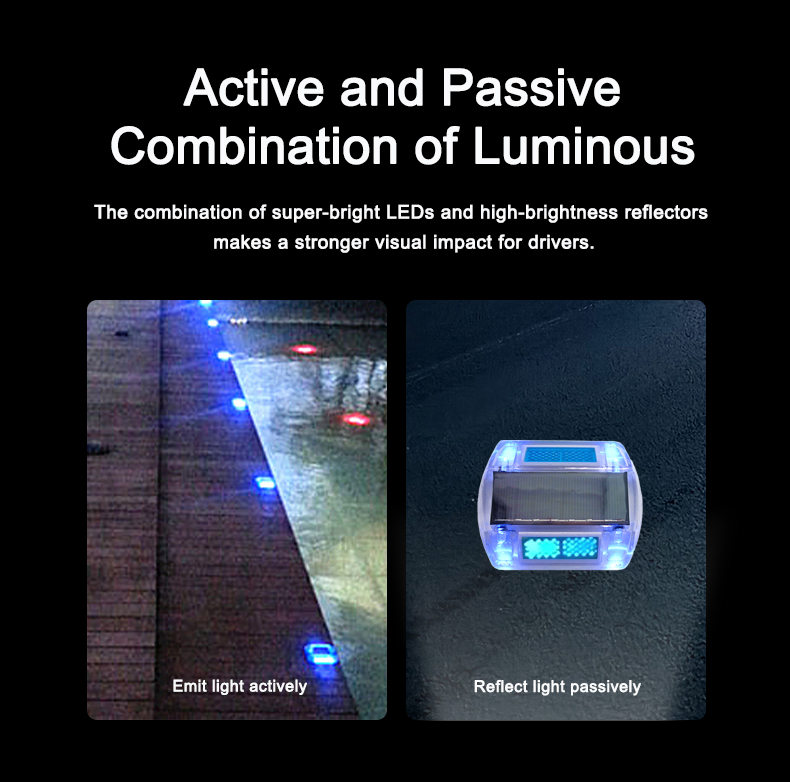

1.Emit light actively and reflect light passively making stronger visual impact feeling

2.High impact resistance, friction resistance ,corrosion resistance

3.Easy installation, free maintenance

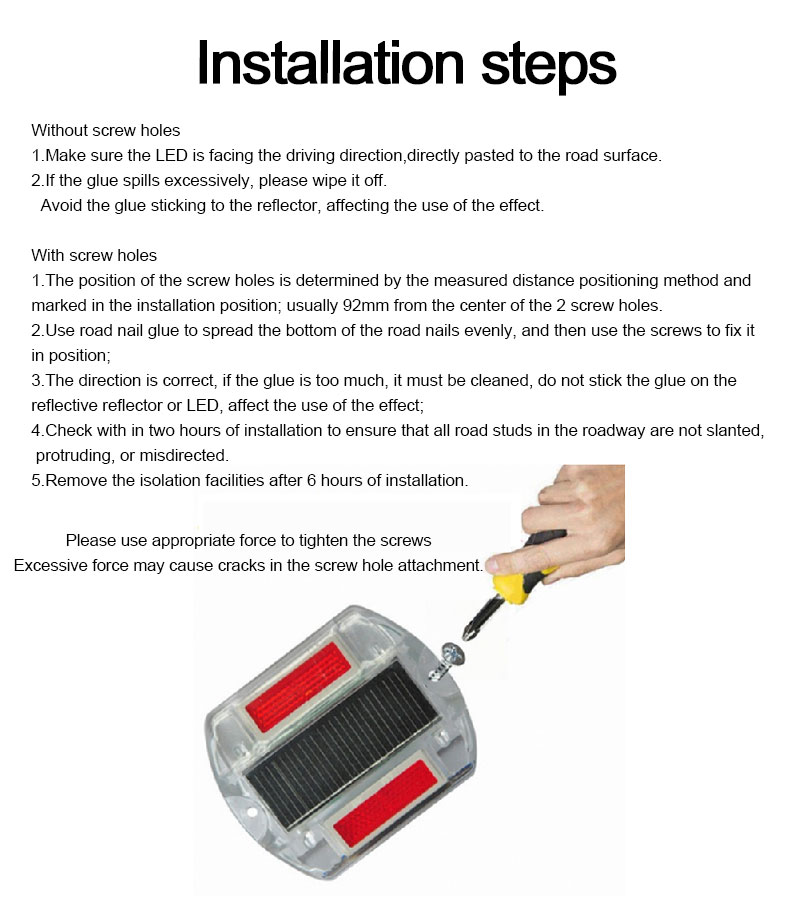

Installation introduction
1.Before installation ,you must isolate the working place with road and make sure safety .
2.Determine the location of the installation, Then clean the position   . Make sure the installation

position dry.
3.Ensure that the location of the installation level off, can not be installed on cracks and uneven

road surface.
4.Glue the road stud .Ensure enough glue, the road stud bottom and pavement without gap, if

there is a gap, the road stud will be easy broken with car and truck go over it .

Full of glue Even have screw hole
It have to full of glue

5. Confirm product type: Without screw hole or With screw hole
Without screw hole
●Ensure the right direction,Paste directly;
●If the glue is too much, it must be clean; Don’t cover the glue on reflector.

6. Checking within two hours after installation, ensure that all of the road stud no upside, loaded askew.
7. Installation after 6 hours, you can removing isolation facilities.

Notes
●Suggest to use without screw hole solar road stud on road .With screw hole only use for Vertical       position
●Please install it where it is not easy to be run over by vehicles. Especially not in the middle of the road

1. Quality assurance

Guangzhou Owleye Optoelectronic Technology Co.,Ltd. focus on the research,

production,development and application of road traffic safety produts. Specialize in

producing the high quality solar road stud and other road safety products for many

years,please be free to purchase

2.Package

100pcs/ctn    N.W. 16kg      G.W. 16.8kg      Ctn size:38*23*23.5cm

3. For shipping

Before knowing your destination and shipping way,all our quotation is EXW price,if you have

more requirements or want to know more about shipping ,please contact with sales

4. About after-sale service

Warranty is 1 year(non human reason). Just need to show the Contract or Proforma invoice
