Embedded PC solar road stud
Your position: Home > Products > Solar Road Stud
Embedded PC solar road stud
Embedded PC Solar road stud
Item No.：SRSP2
Description：
It is best choice to decorate park,garden,footpath,square etc. Easy installation,free maintenance
- Content
- Specification
- Advantage
- Comparison
- Installation
- Application
- Purchase
Product introduction:

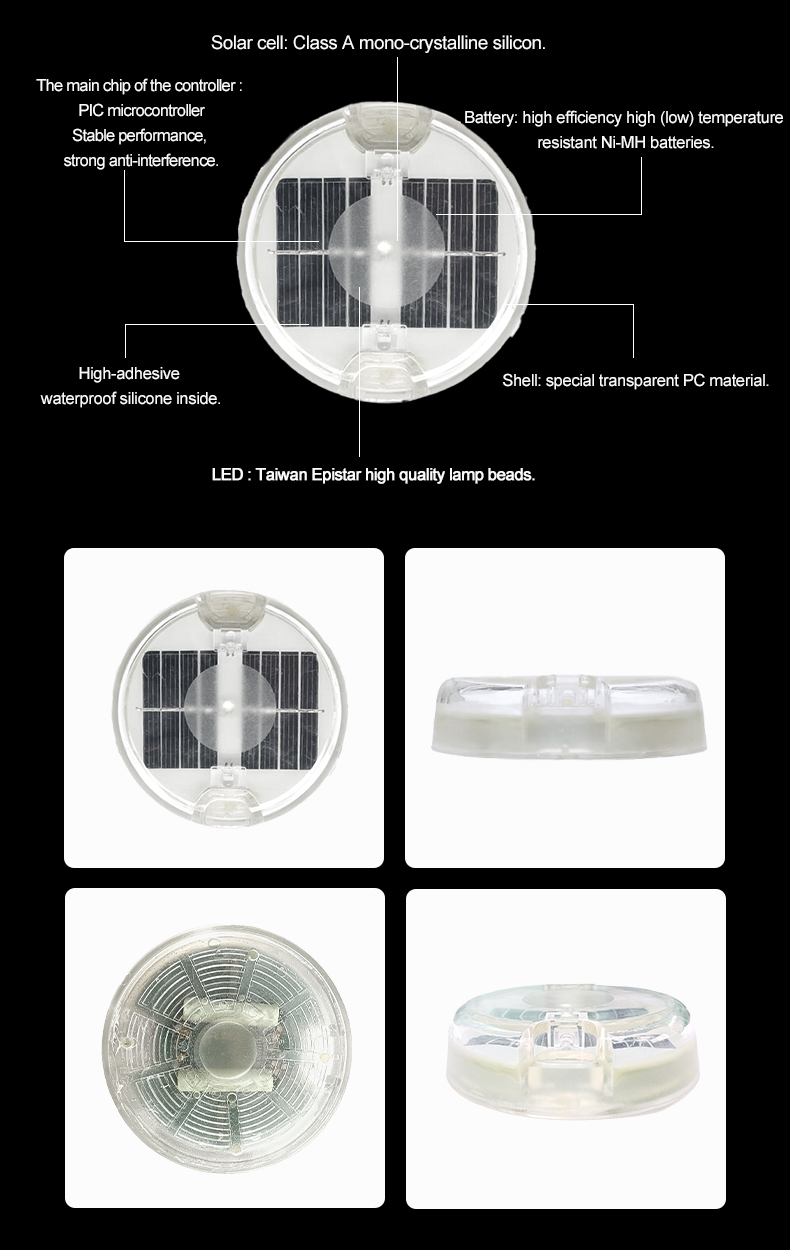

Solar road stud is one of the road studs,usually installed follow the road marking line, is used for indicating the road direction at night or rainy or foggy days.It is composed of shell , reflector,solar panel, LED and circuit board and so on.
It flash or be steady light at night actively, doesn’t depend on car light,make more longer visible distance,more clear visual feeling to driver,make driving more safe.

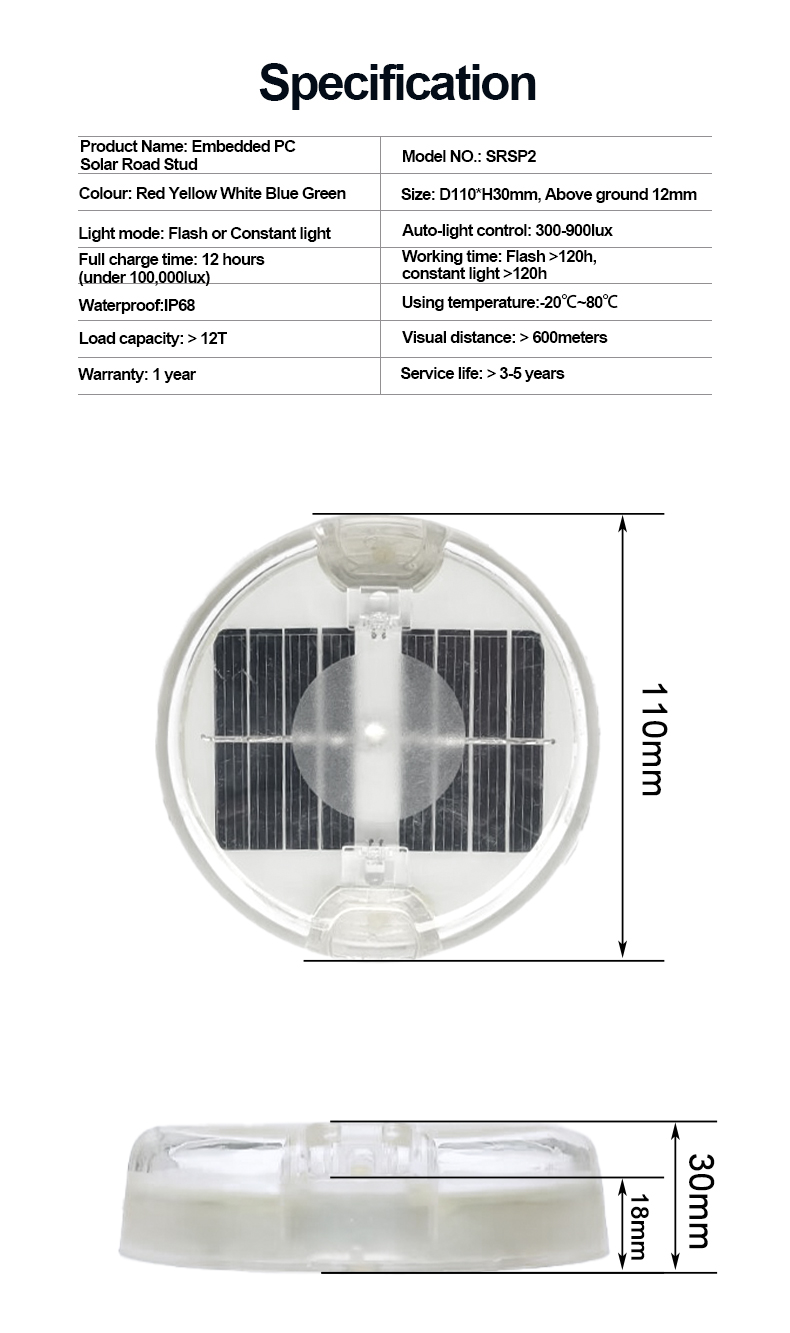

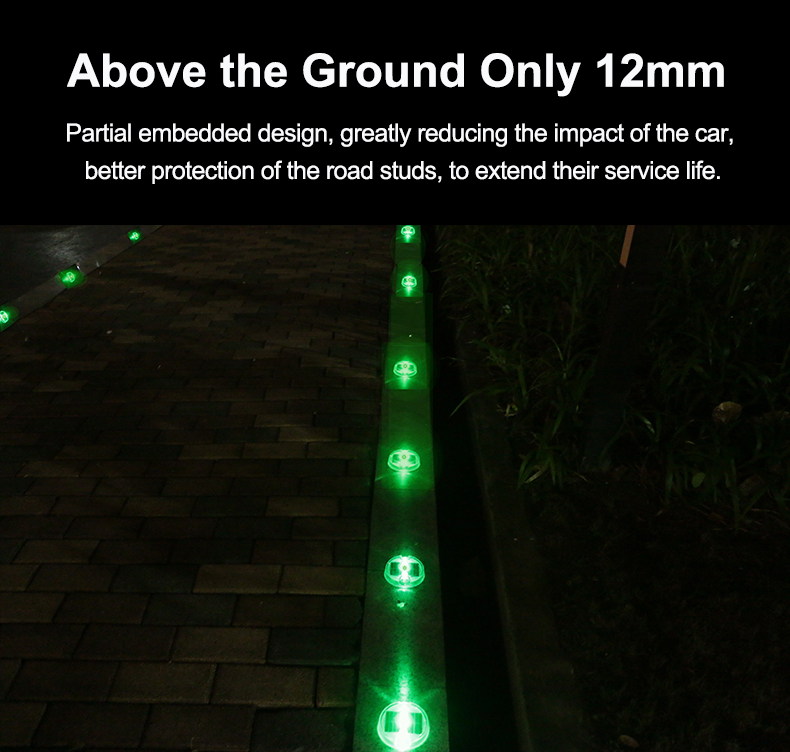

Size: D100*H30mm,above ground 12mm

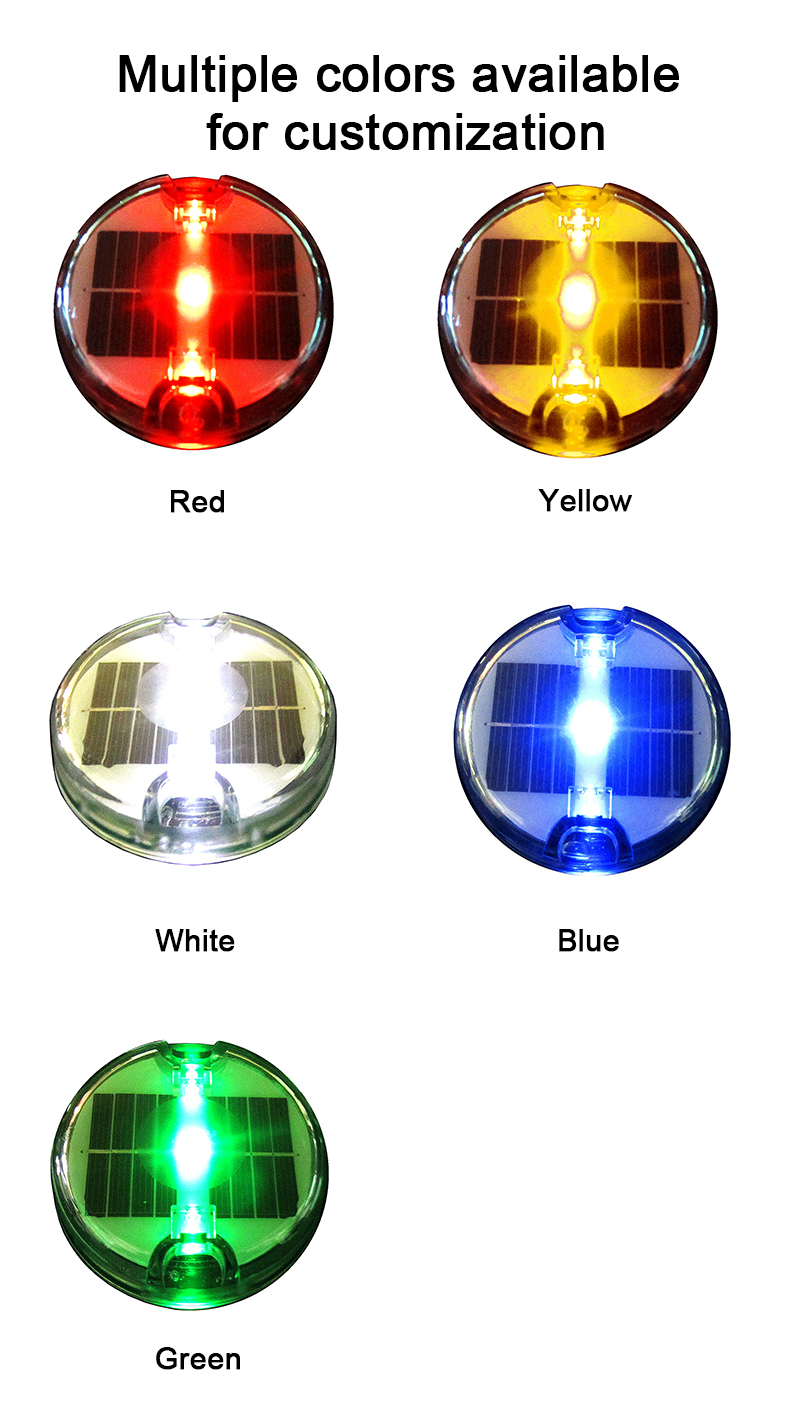

Colour: Red/Yellow/White/Blue/Green
Light mode: Flash or Constant light

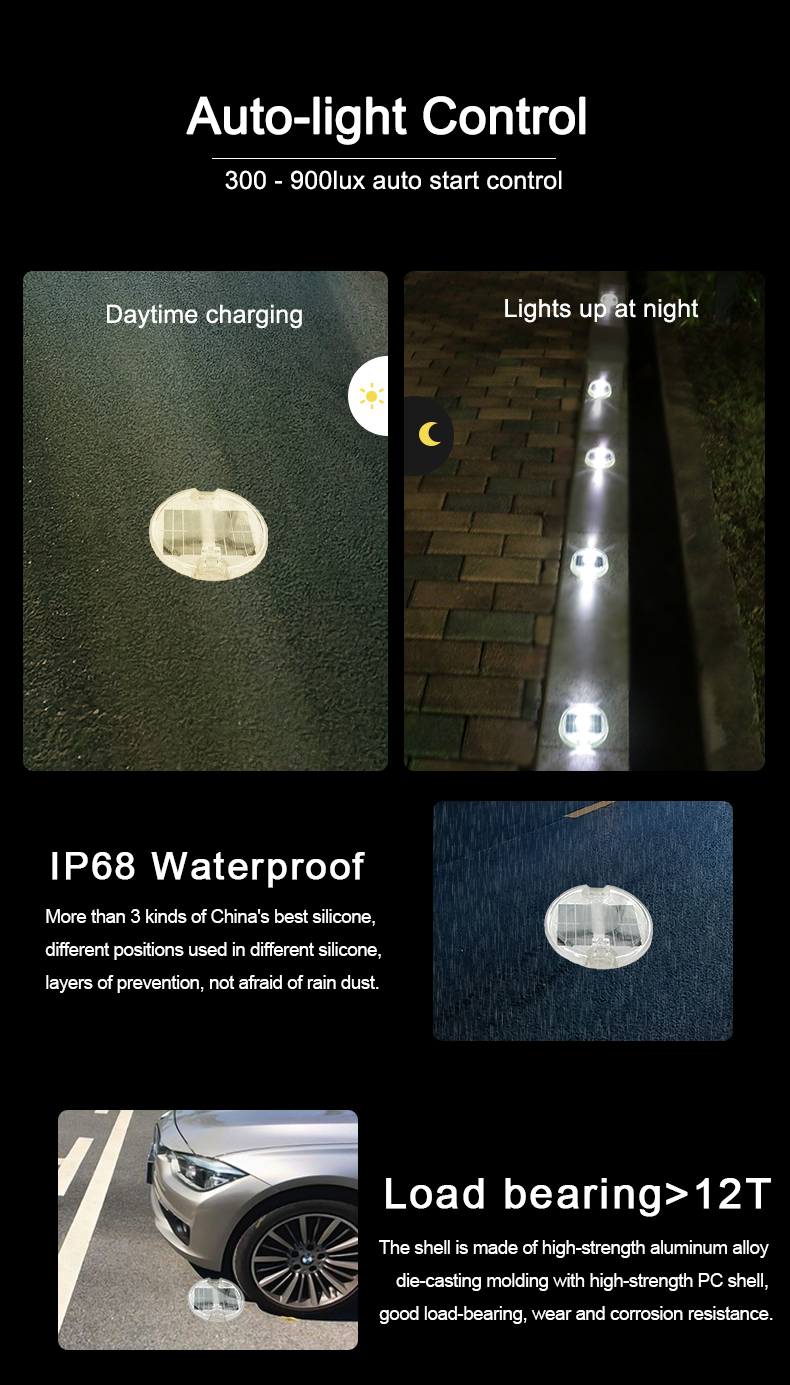

Auto-light control: 300--900lux

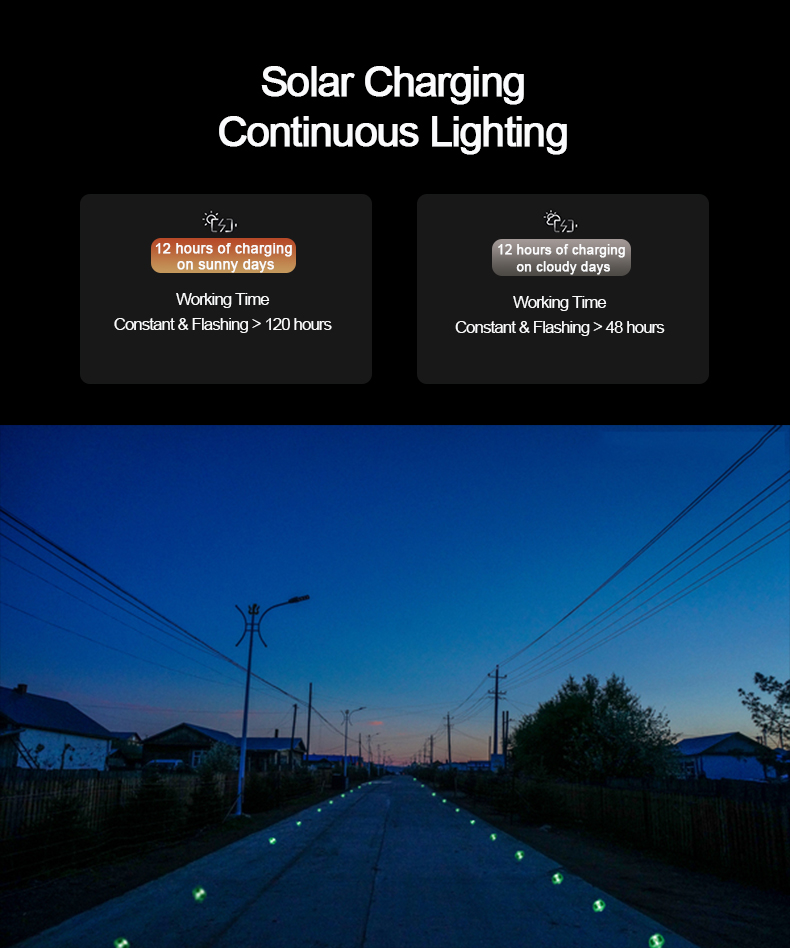

Full charge time: 12hours (under 100,000lux)
Working time: Flash > 120h, Constant>120h
Water-proof: IP68
Using temperature:-20℃～80℃
Load-bearing: >120kN
Visual distance: >800meters
Warranty: 1 year
Service life: 3--5 years

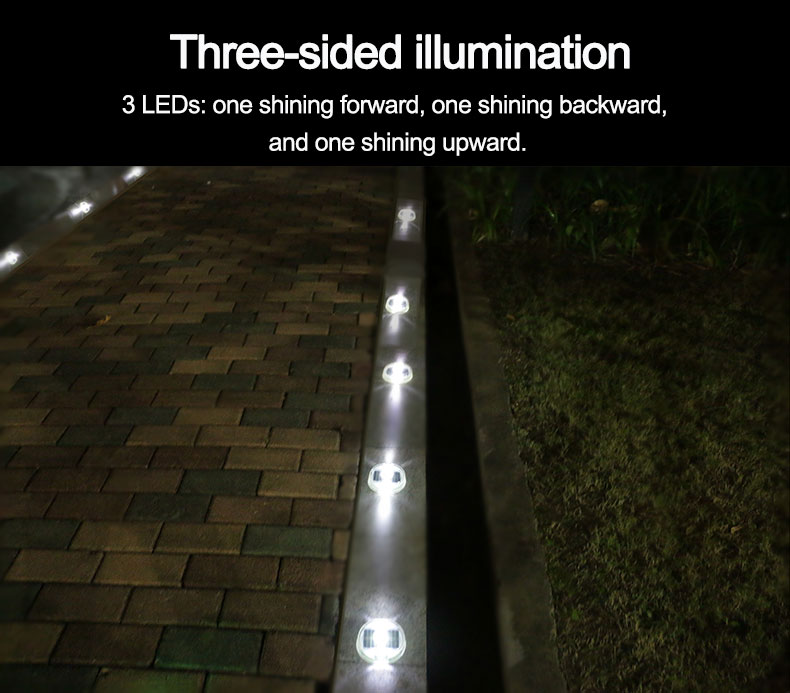

1.It is best choice to decorate park,garden,footpath,square etc.
2.High impact resistance, friction resistance ,corrosion resistance
3.Easy installation, free maintenance
| Item |
Other Supplier |
OWLEYE |
|
Battery |
Usual Ni-MH or Ni - Cd battery, charge and discharge less than 500times. Short lifetime |
High quality Ni-MH, charge and discharge more than 700times,resist high/low temperature |
|
Solar cell |
Most use B or C -grade,even scrap piece solar cell which be low efficiency and short lifetime |

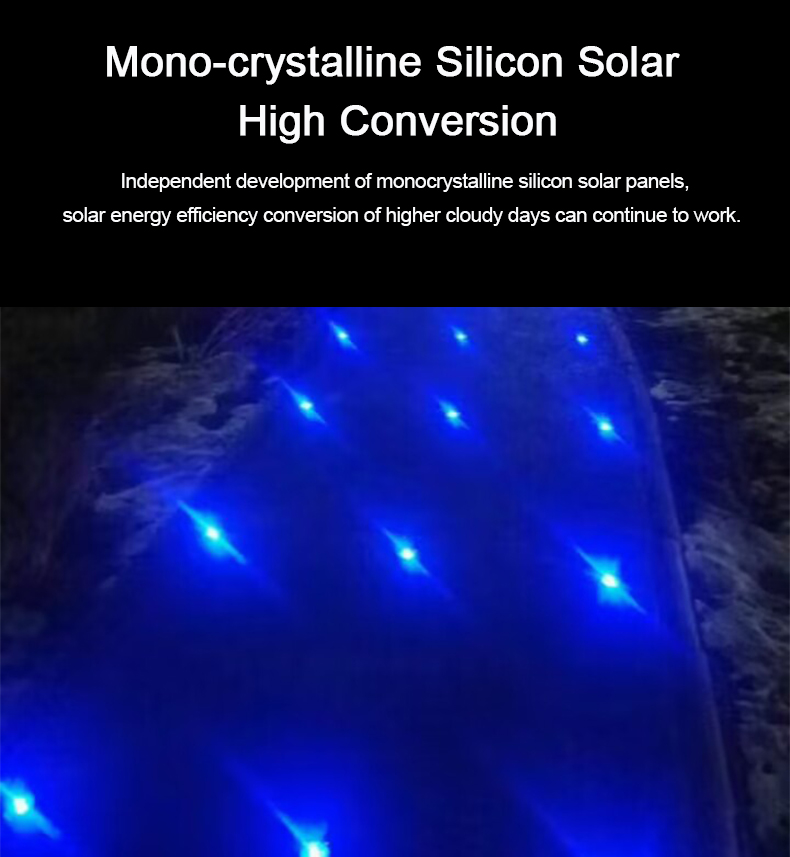

Only use A-grade and high - efficiency monocrystalline silicon solar cell which the conversion efficiency of light to electricity is as high as 19.9%. |
|
Material
|
Normal plastic
|
Bullet-proof strong PC |
|
Reflector |
No reflector or brightness is not up to the standard |
Optical design high bright reflector which high impact resistance, friction resistance,high bright |
1.Before installation ,you must isolate the working place with road and make sure safety .
2.Determine the location of the installation, Then make a hole .
3.Ensure that the location of the installation level off, can not be installed on cracks and uneven road surface.
4.Installation
●Open the necessary holes with Diameter:130mm , Depth : 40mm;
●Dry the holes with a blowtorch and clean all the structure;
●Pour the glue into the hole ,get to three quarters of the hole;
●Put the solar road stud into the hole;
●Ensure the right direction.If the glue is too much, it must be clean; Don’t cover the glue on road stud .
5. Checking within two hours after installation, ensure that all of the road stud no upside, loaded askew.
6.Installation after 6 hours, you can removing isolation facilities.
Notes
● Please install it where it is not easy to be run over by vehicles. Especially not in the middle of the road
1. Quality assurance
Guangzhou Owleye Optoelectronic Technology Co.,Ltd. focus on the research,
production,development and application of road traffic safety produts. Specialize in
producing the high quality solar road stud and other road safety products for many
years,please be free to purchase
2.Package
80pcs/ctn N.W. 20kg G.W. 21kg Ctn size:45*32*24cm
3. For shipping
Before knowing your destination and shipping way,all our quotation is EXW price,if you have
more requirements or want to know more about shipping ,please contact with sales
4. About after-sale service
Warranty is 1 year(non human reason). Just need to show the Contract or Proforma invoice
5. About service consultation
Tel:+86 13632400029
Welcome your inquiry and nice long term cooperation,will make you satisfied
