Aluminum cat eye road stud
Your position: Home > Products > Reflective Road Stud
Aluminum cat eye road stud
Aluminum cat eye road stud
Model No.：RSA7
Component: Top quality complete new aluminum ingot; High reflective 31 glass beads cat eye reflector
Description: High bright, high load-bearing, high strength, impact resistance, friction resistance.
Very suitable for heavy traffic road.
- Content
- Specification
- Advantage
- Comparison
- Installation
- Application
- Purchase

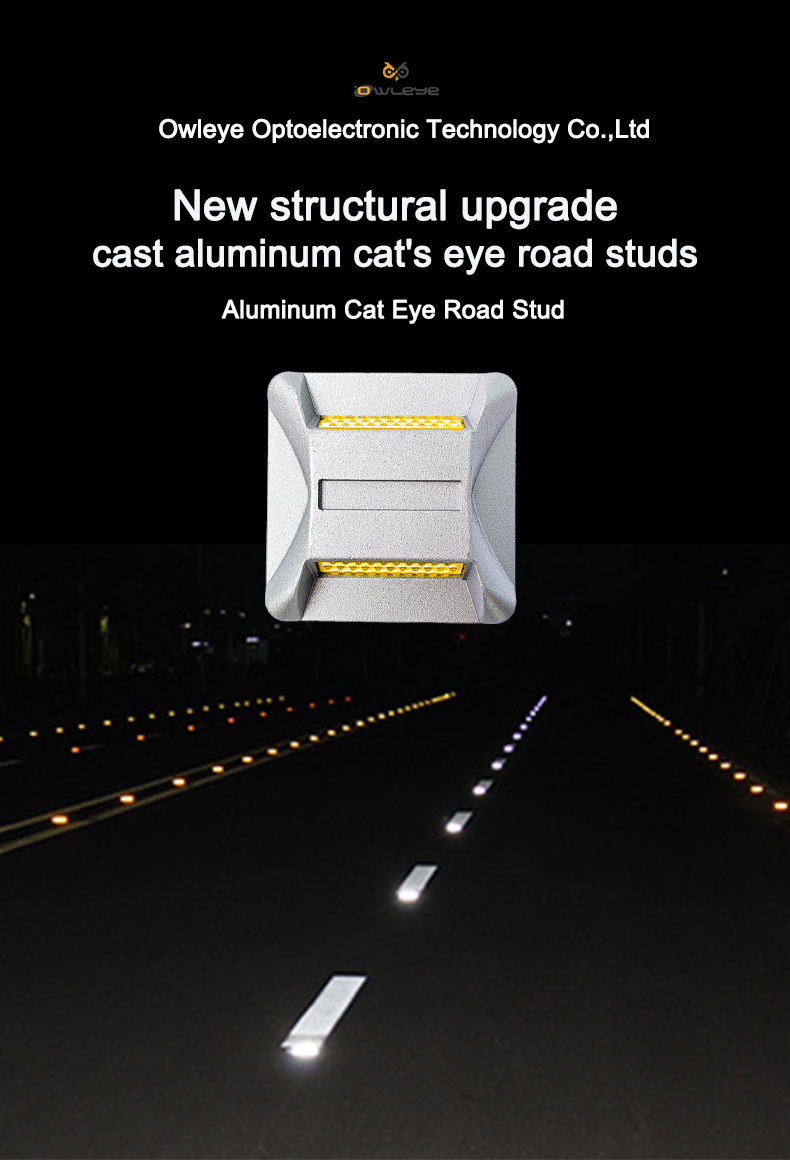

Aluminum cat eye road stud
Model No.：RSA7

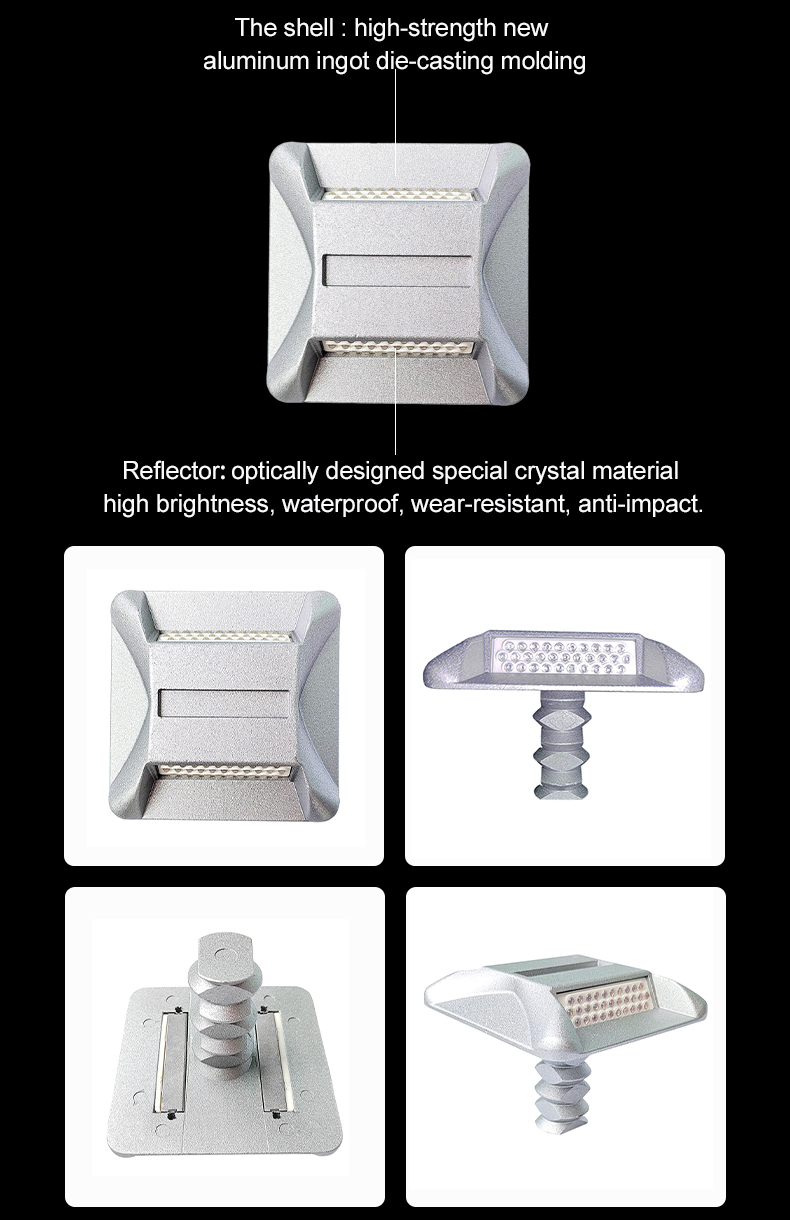

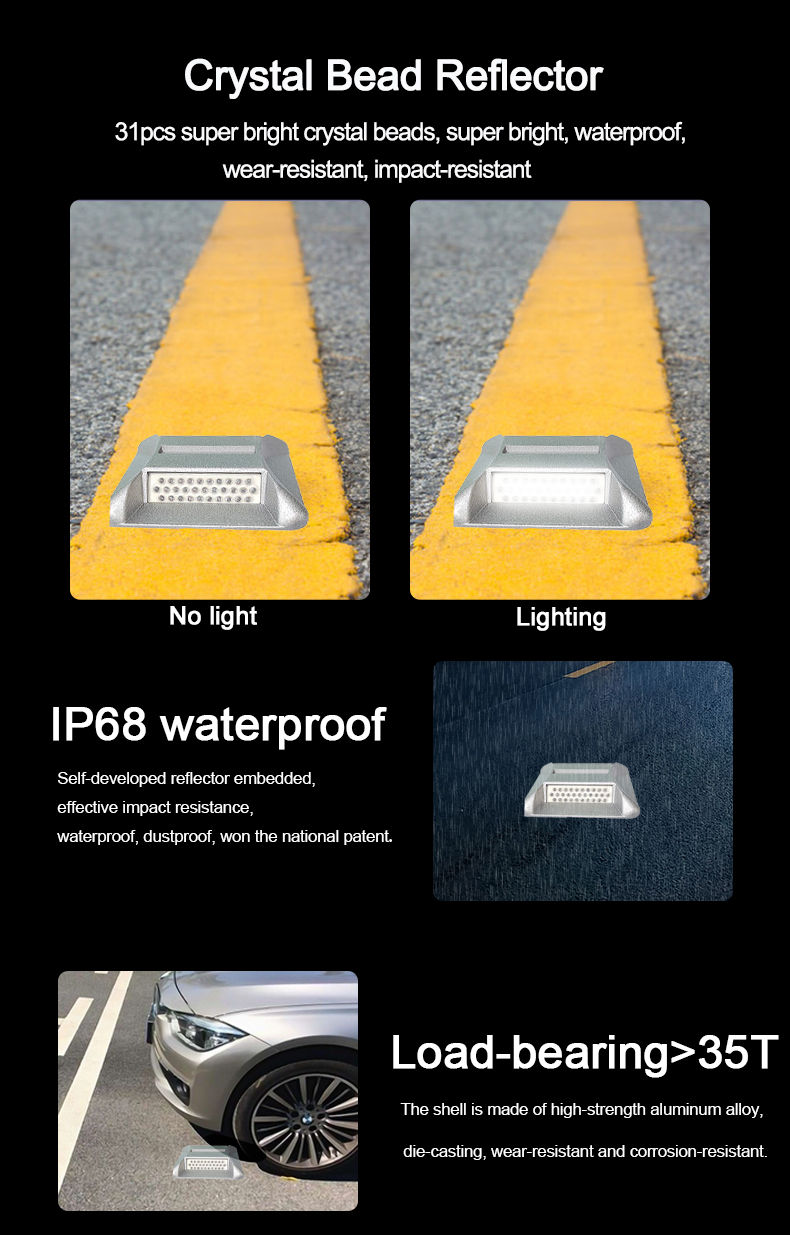

It is made of the high reflective 31glass beads cat eye reflector and high load-bearing aluminum shell.
It could be installed on the road center .

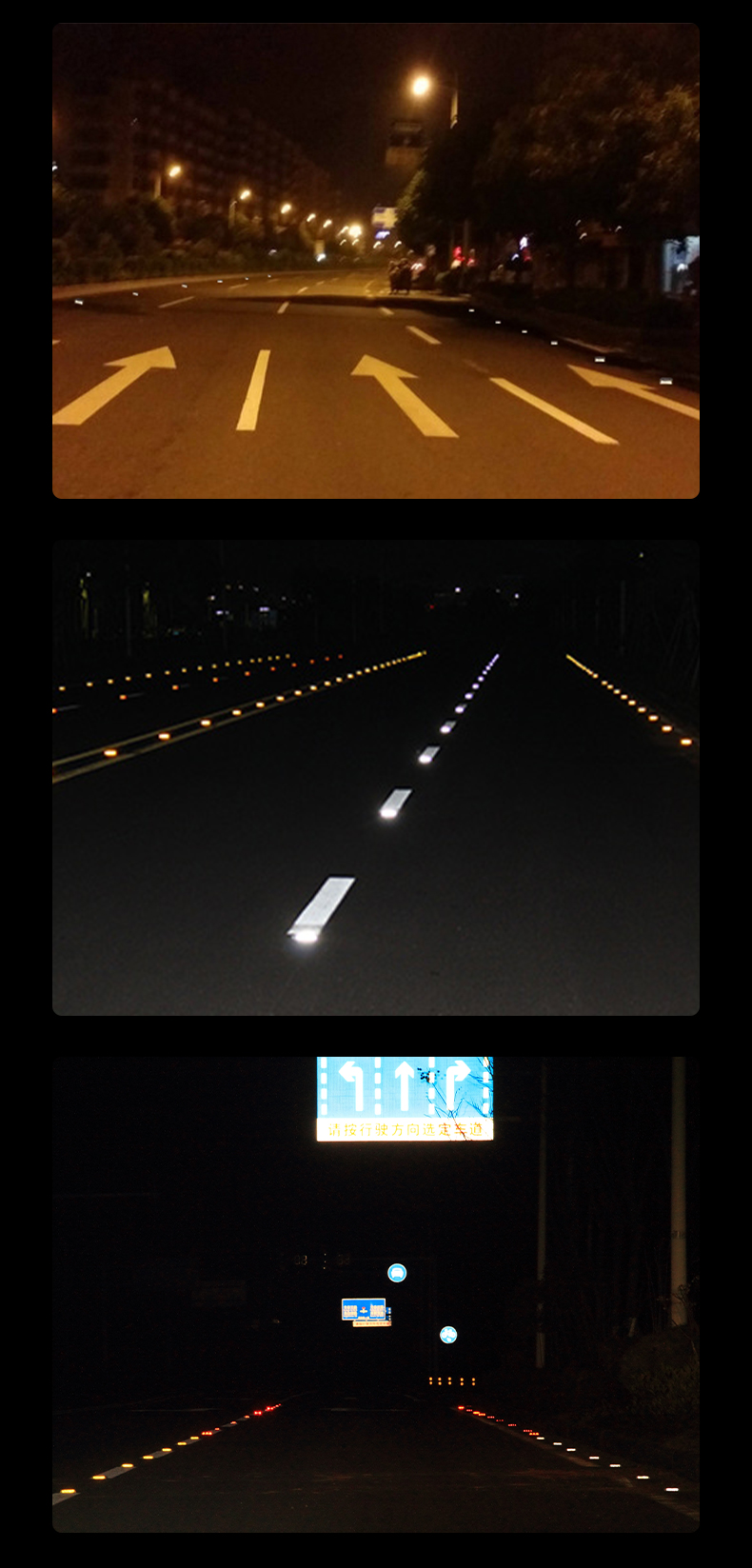

Reflection at night serves as a guide for road vision.
Single side or double sides available

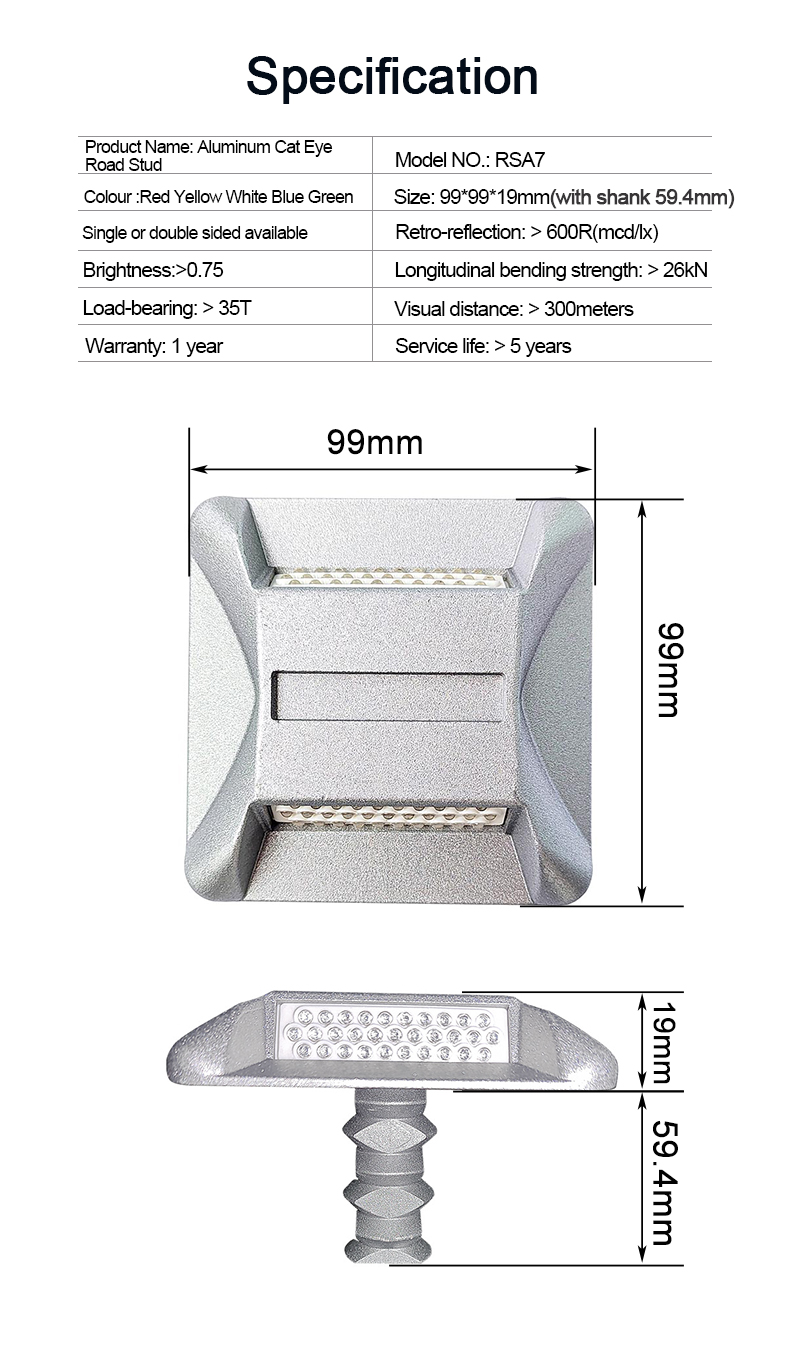

Color: Red Yellow White Blue Green
Retro-reflection:> 600R(mcd/lx)
Load-bearing: >350kN
Longitudinal bending strength:>26kN
Brightness: > 0.75
Visual distance: >300meters
Warranty: 1 year
Service life: > 5 years
| Item |
Other Supplier |
OWLEYE |
|
Material
|
Recycled aluminum, low density ,bad performance,load bearing less than 15 tons
|
International standard GB-ADC10 Aluminum， good performance, load bearing more 35tons |
|
Reflector |
Brightness is not up to the standard |
Optical design high bright reflector which high impact resistance, friction resistance |

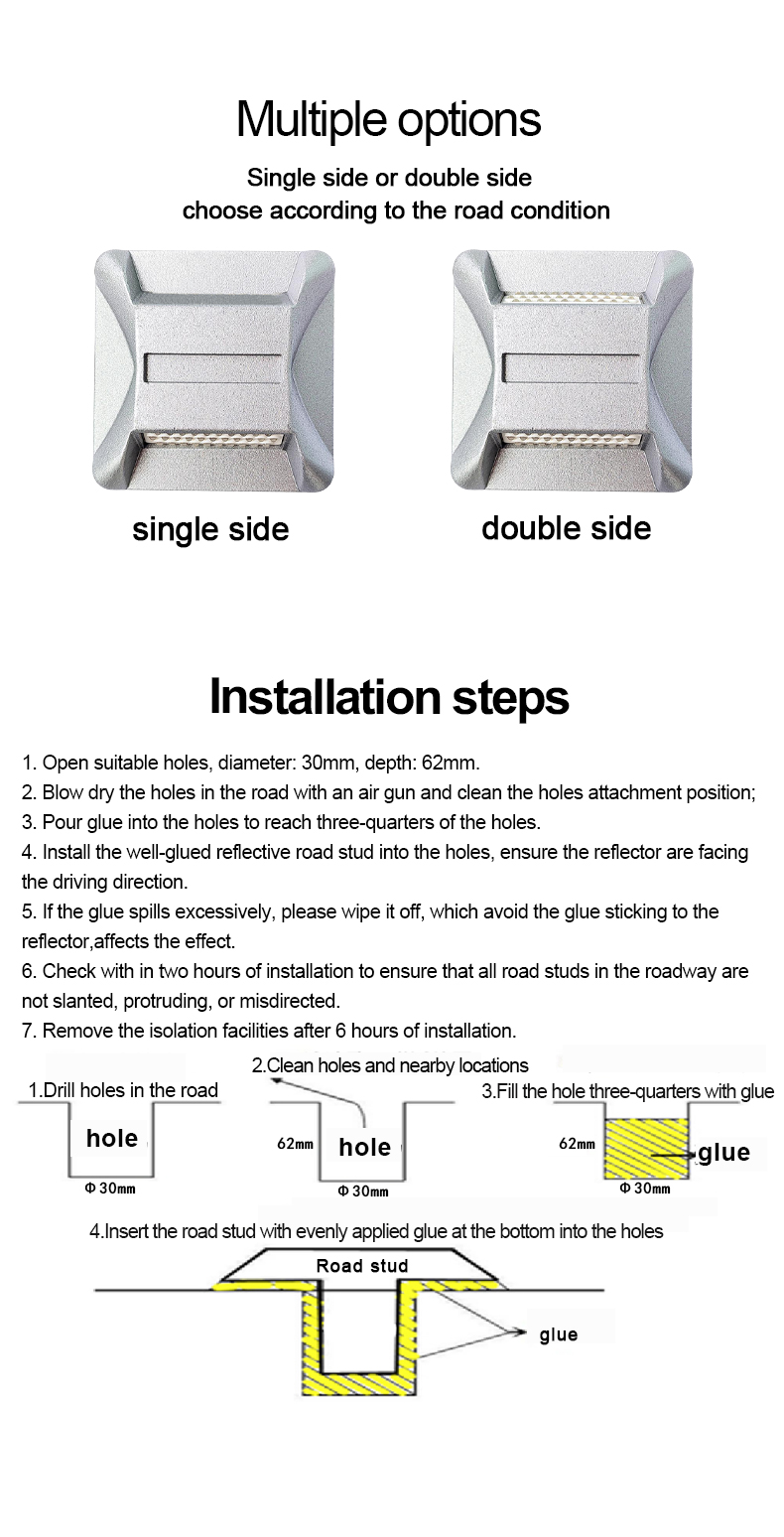

1.Before installation ,you must isolate the working place with road and make use safety .
2.Determine the location of the installation, Then clean the position . Make sure the installation position dry.
3.Ensure that the location of the installation level off, can not be installed on cracks and uneven road surface.
4.Glue the road stud .Ensure enough glue, the road stud bottom and pavement without gap, if there is a gap, the road stud will be easy broken with car and truck go over it .
5.Installation
●Open the necessary holes with Diameter:35mm , Depth : 65mm;
●Pour the glue into the gule ,get to three quarters of the hole;
●Set the market into the hole;
●Ensure the right direction.If the glue is too much, it must be clean; Don’t cover the glue on reflector.
7.Installation after 6 hours, you can removing isolation facilities.
Notes
●These details play a very important role in ensuring the quality requirements and service life of the road stud;
1. Quality assurance
Guangzhou Owleye Optoelectronic Technology Co.,Ltd. focus on the research,
production, development and application of road traffic safety products.
Specialize in producing the high quality solar road stud and other road safety products for many years,
please be free to purchase
2.Package
40pcs/ctn N.W： 12.5kg G.W：13.5kg Ctn size: 53*49*11CM
3.For shipping
Before knowing your destination and shipping way, all our quotation is EXW price.
If you have more requirements or want to know more about shipping ,please contact with sales
4. About after-sale service
Warranty is 1 year(non human reason). Just need to show the Contract or Proforma invoice
