Product introduction:

LED Road Stud operating by AC power mainly, some also by big solar panel power .

It is wired, constant light or controlled to be synchronous flash by controller.

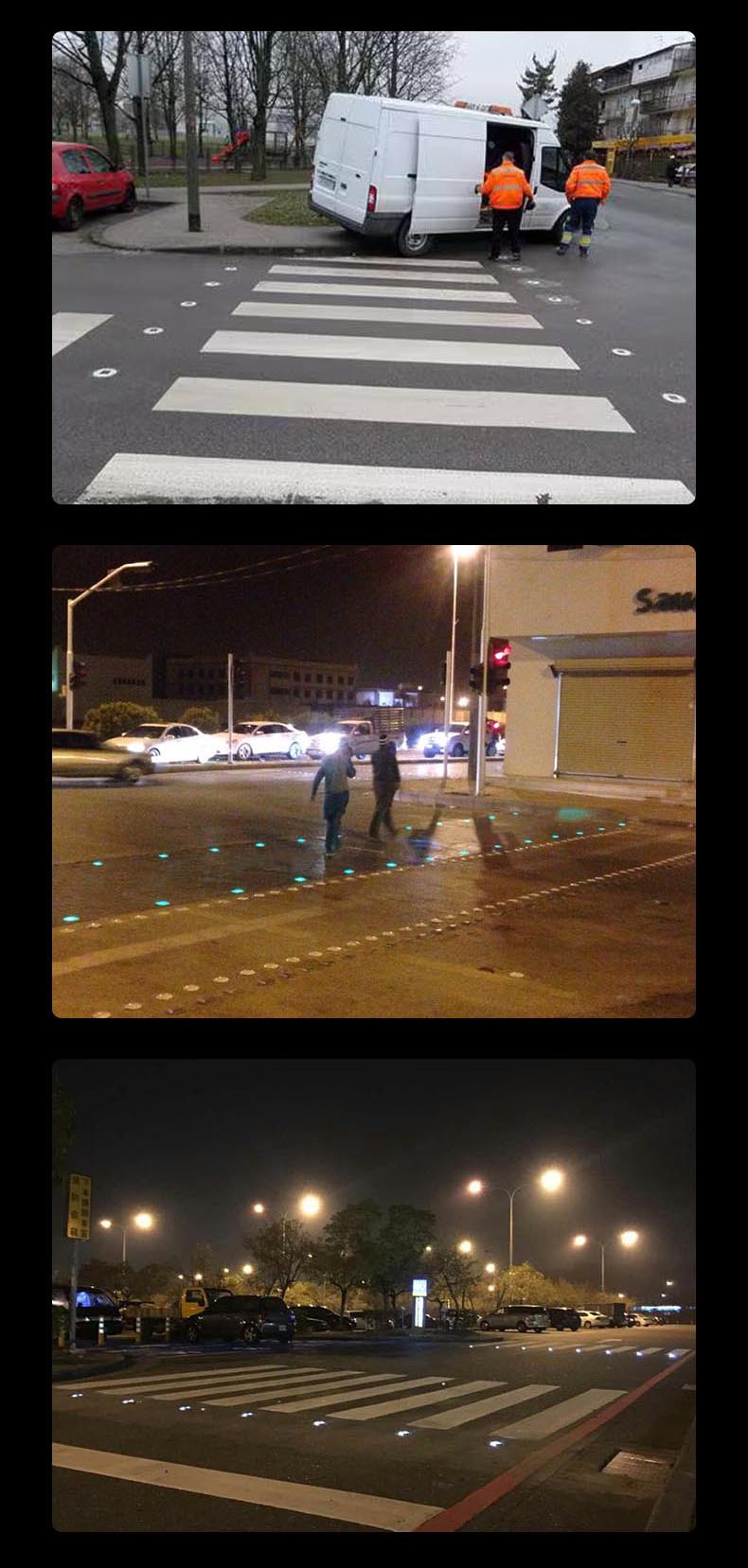

It can Connect with traffic signal light to make intelligent crossing road;

It can use on the intelligent crossing road system,introduction as below:

Size: D145*H59mm(Above ground: only 15mm)

Colour: Red/Yellow/White/Blue/Green

Light mode: Constant light or Synchronous flash

Input voltage: DC24V or DC 12V

Water-proof: IP68

Using temperature:-20℃～80℃

Load-bearing: >400kN

Visual distance: >800meters

Warranty: 1 year

Service life: >5 years

1.High load-bearing, high impact resistance, friction resistance ,corrosion resistance

2.Super bright ,high strength, energy-saving and durability

3.Easy installation, easy maintenance,if need,just unscrew the aluminum cover

and replace the inner part

4.It can connect with traffic signal ight, change colour according to signal

light colour

Installation introduction
1.Before installation ,you must isolate the working place with road and make sure safety .
2.Determine the location of the installation, Then make a hole .

3.Ensure that the location of the installation level off, can not be installed on cracks and uneven

road surface.

●Dry the holes with a blowtorch and clean all the structure;
●Connect LED road stud and put the cable in the insulating protective tube then Pour the glue into  the road stud hole and seal the protective tube ;
●Put the LED road stud into the hole;
●Ensure the right direction.If the glue is too much, it must be clean; Don’t cover the glue on road stud .

6. Checking within two hours after installation, ensure that all of the road stud no upside, loaded askew.
7.Installation after 6 hours, you can removing isolation facilities.
Notes
●These details play a very important role in ensuring the quality requirements and service life of the LED
road stud ;

1. Quality assurance

Guangzhou Owleye Optoelectronic Technology Co.,Ltd. focus on the research,

production,development and application of road traffic safety produts. Specialize in

producing the high quality solar road stud and other road safety products for many years,please be free to purchase

2.Package

20pcs/ctn        N.W： 15.6kg         G.W：16.9kg        Ctn size: 61*34*16.2cm

3.For shipping

Before knowing your destination and shipping way,all our quotation is EXW price,if you have

more requirements or want to know more about shipping ,please contact with sales

4. About after-sale service

Warranty is 1 year(non human reason). Just need to show the Contract or Proforma invoice

5.  About service consultation

Tel: 020-39218706

Welcome your inquiry and nice long term cooperation,will make you satisfied
