Product introduction:

Tunnel LED Road Stud operating by AC power mainly, It is wired, constant light or controlled to be synchronous flash by controller.

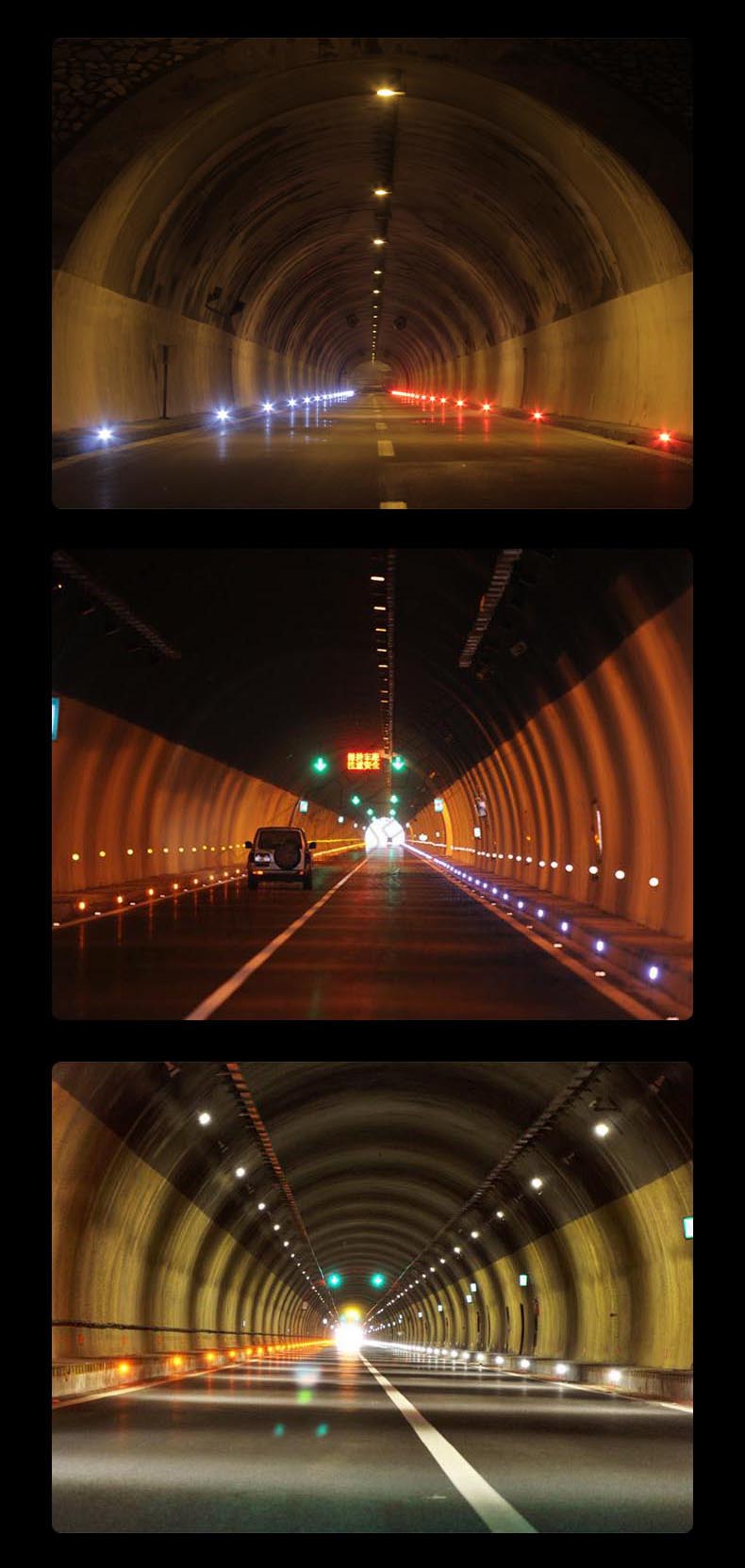

Emit light actively, long visible distance,better warning effect in tunnel

Size: 100x90x30mm

Colour: Red/Yellow/White/Blue/Green

Light mode: Constant light or Synchronous flash

Input voltage: DC24V or DC 12V

Water-proof: IP68

Using temperature:-20℃～80℃

Visual distance: >800meters

Warranty: 1 year

Service life:  >5 years

1.High impact resistance, friction resistance ,corrosion resistance

2.Super bright ,high strength, energy-saving and durability

3.Easy installation, use 2pcs screws to fix it on wall side of the road or tunnel directly

Installation introduction
1.Before installation ,you must isolate the working place with road and make sure safety .
2.Determine the location of the installation, Staking out in survey and marking screw hole position
3.Open 2 ditch for main cable and small ditch for LED road stud cable

4.Dry the cable ditch with a blowtorch and clean all the structure

5.Installation
●Connect LED road stud and put the cable in the insulating protective tube then seal the tube with glue
●please daub glue on the road stud base and then screw the LED road stud on the tunnel road edge
●Please don’t connect the LED road stud directly with AC 220V power .It have to use our control box that is DC24V .Normally one control box can control 1000 meters .

6. Checking within two hours after installation, ensure that all of the road stud no upside, loaded askew.
7.Installation after 6 hours, you can removing isolation facilities.
Notes
●These details play a very important role in ensuring the quality requirements and service life of the LEDroad stud ;

1. Quality assurance

Guangzhou Owleye Optoelectronic Technology Co.,Ltd. focus on the research,

production,development and application of road traffic safety produts. Specialize in

producing the high quality solar road stud and other road safety products for many years,please be free to purchase

2.Package

50pcs/ctn        N.W： 19.5kg         G.W：20.5kg        Ctn size: 45*44.5*24cm

3.For shipping

Before knowing your destination and shipping way,all our quotation is EXW price,if you have

more requirements or want to know more about shipping ,please contact with sales

4. About after-sale service

Warranty is 1 year(non human reason). Just need to show the Contract or Proforma invoice

5.  About service consultation

Tel: 020-39218706

Welcome your inquiry and nice long term cooperation,will make you satisfied
